FRAME
SCULTURA CF5 V

FORK
SCULTURA CF5 disc
material: carbon
700x30C max. wheelsize

BRAKES
Shimano Dura Ace
Hydraulic disc

ROTORS
Shimano CL900

BRAKE LEVER
Shimano Dura Ace disc

HEADSET
MERIDA TEAM SL

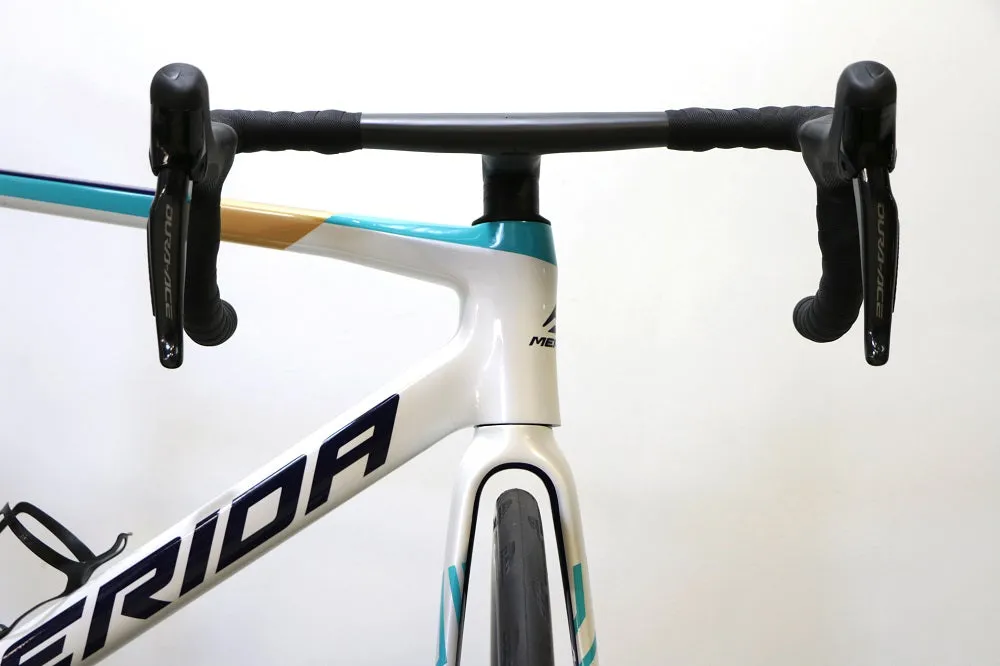

HANDLEBAR
MERIDA TEAM SL 1P INTEGRATED
material: carbon
380mm (XXS-XS-S) 400mm (M-L-XL)

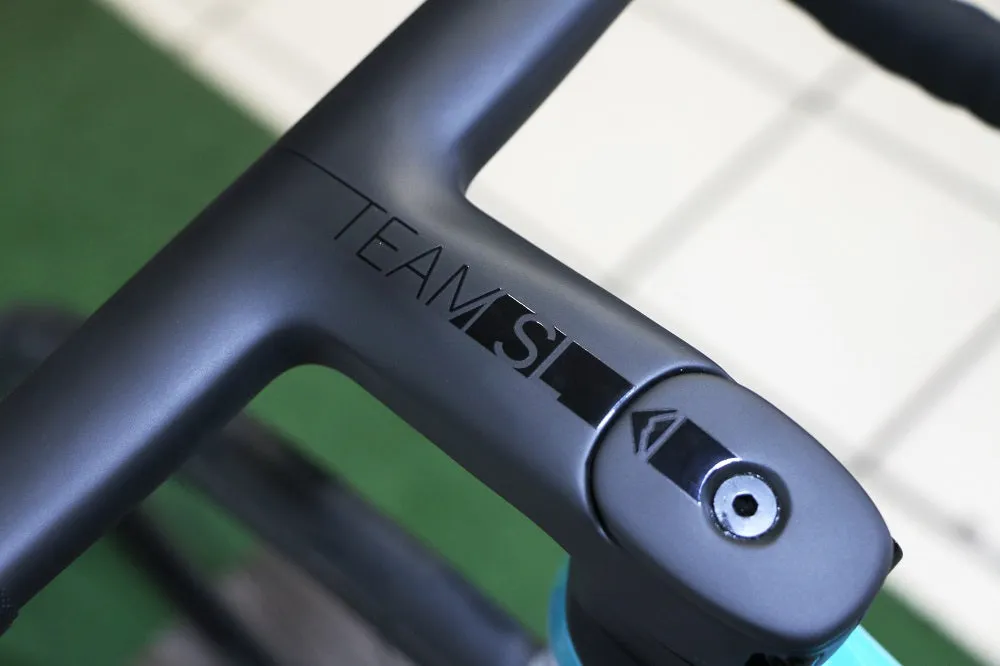

HANDLEBAR STEM
MERIDA TEAM ONE-PIECE INTEGRATED

GRIP
One-Touch

DERAILLEUR (F)
Shimano Dura Ace Di2

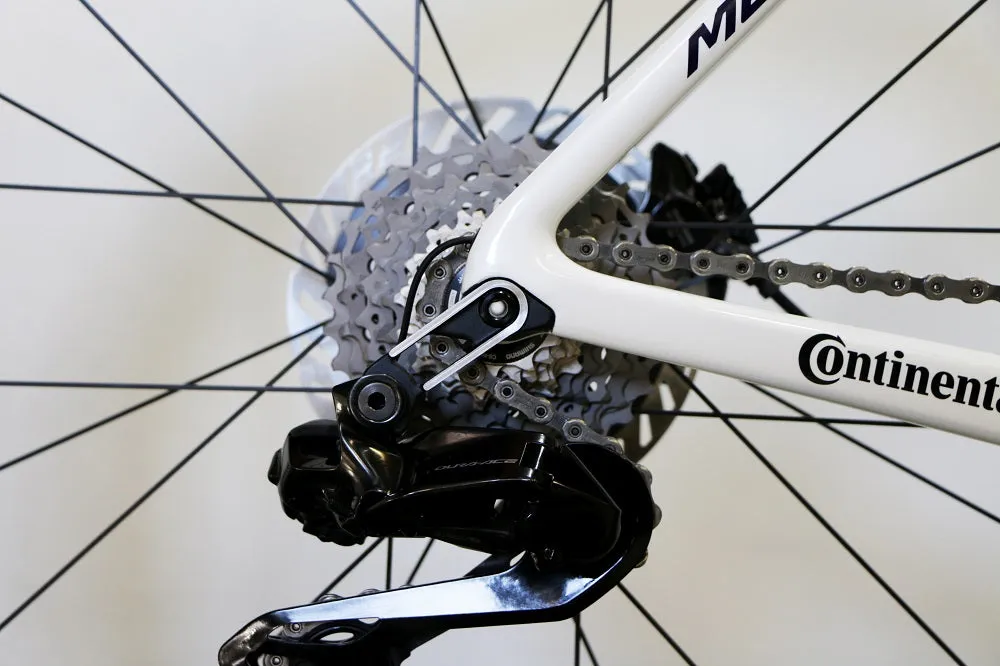

DERAILLEUR (R)
Shimano Dura Ace Di2

SHIFTERS
Shimano Dura Ace disc Di2

SEAT POST
MERIDA TEAM SL
27.2mm diameter
15mm setback
Carbon
S-Flex

SEAT CLAMP
MERIDA EXPERT

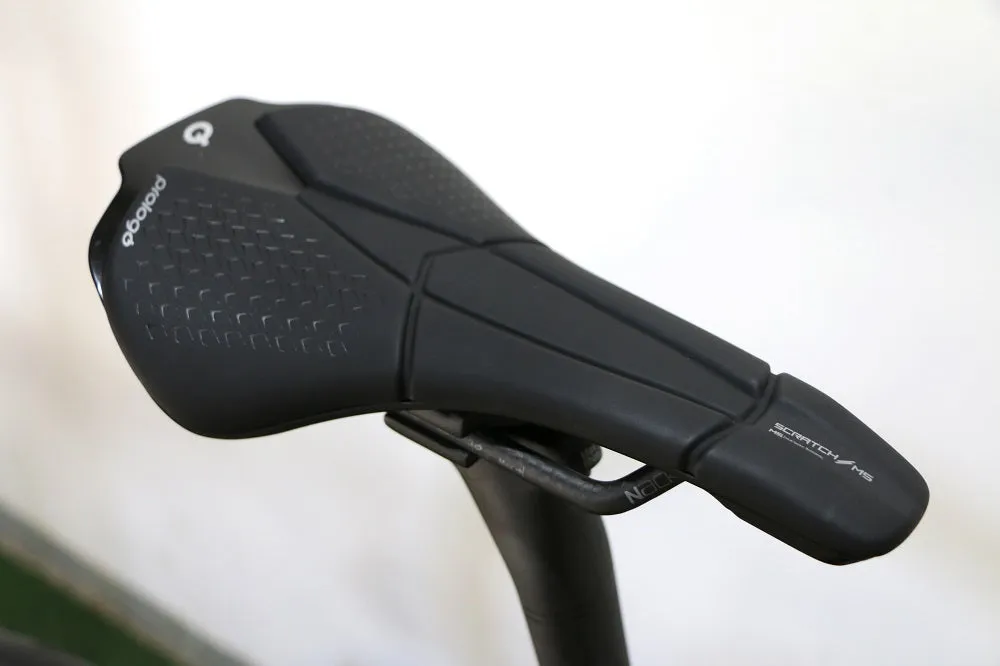

SADDLE
Prologo Scratch M5

CHAIN
Shimano M9100-12

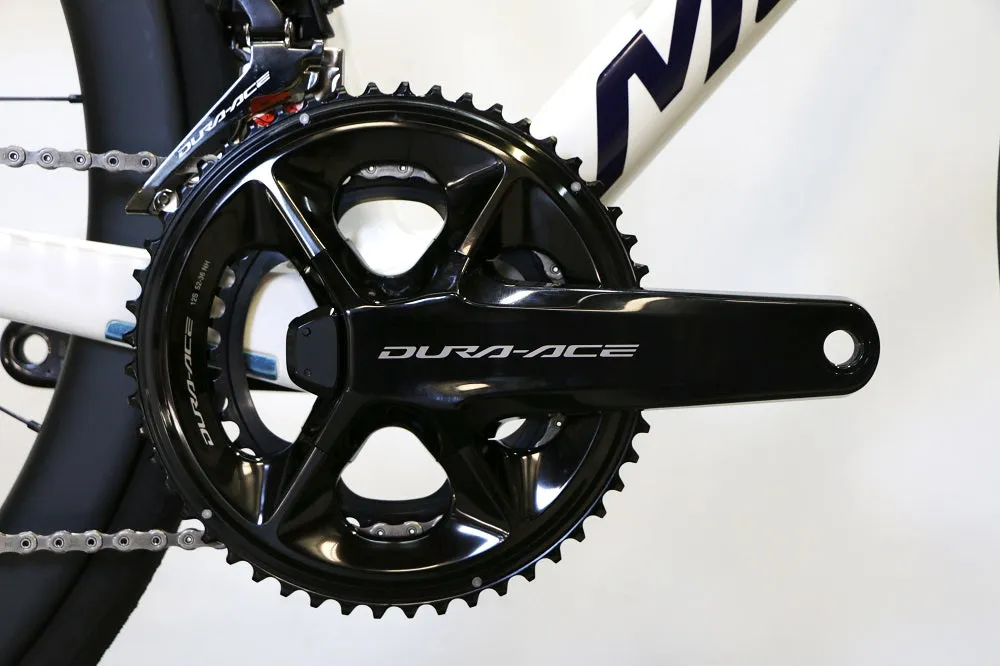

CRANK
Shimano Dura Ace
52-36 teeth
Power Meter
165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

FREEWHEEL
Shimano Dura-Ace R9200
11-30 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B

WHEELSET
Vision Metron 45 SL Clincher TL Disc
100x12mm width front hub
142x12mm width rear hub
21mm inner width
45mm height
Centerlock
material: carbon
Tubeless ready (tubeless tape and valves included)

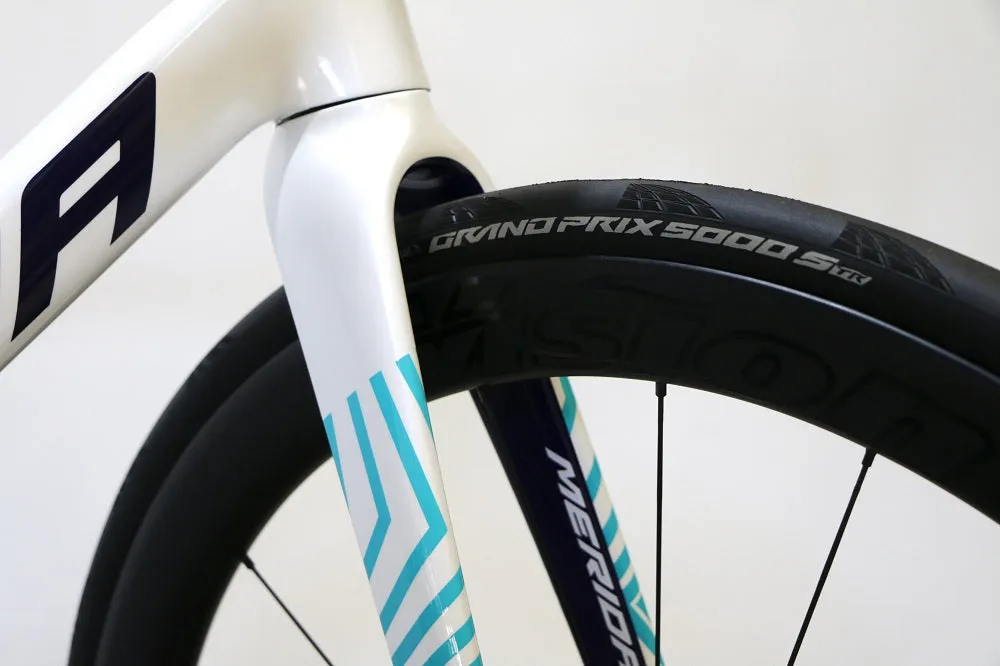

TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
7.2 kg
