FRAME
SCULTURA CF5 V

FORK
SCULTURA CF5 disc
material: carbon
700x30C max. wheelsize

BRAKES
Shimano Ultegra
Hydraulic disc

ROTORS
Shimano CL800
160mm

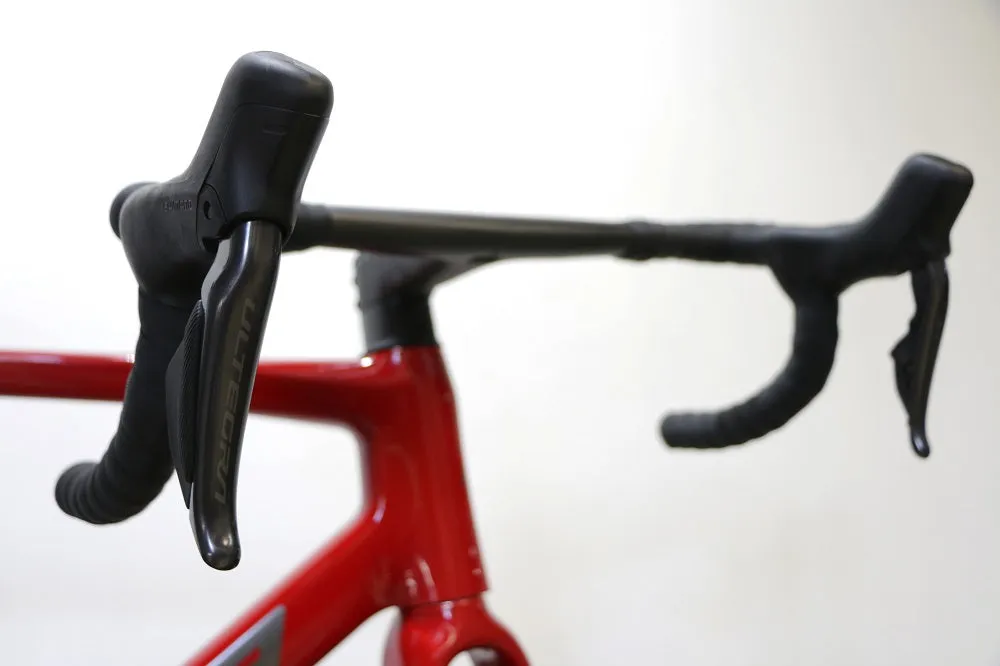

BRAKE LEVER
Shimano Ultegra

HEADSET
MERIDA TEAM SL
VP-MRBHB (OP-203 neck)

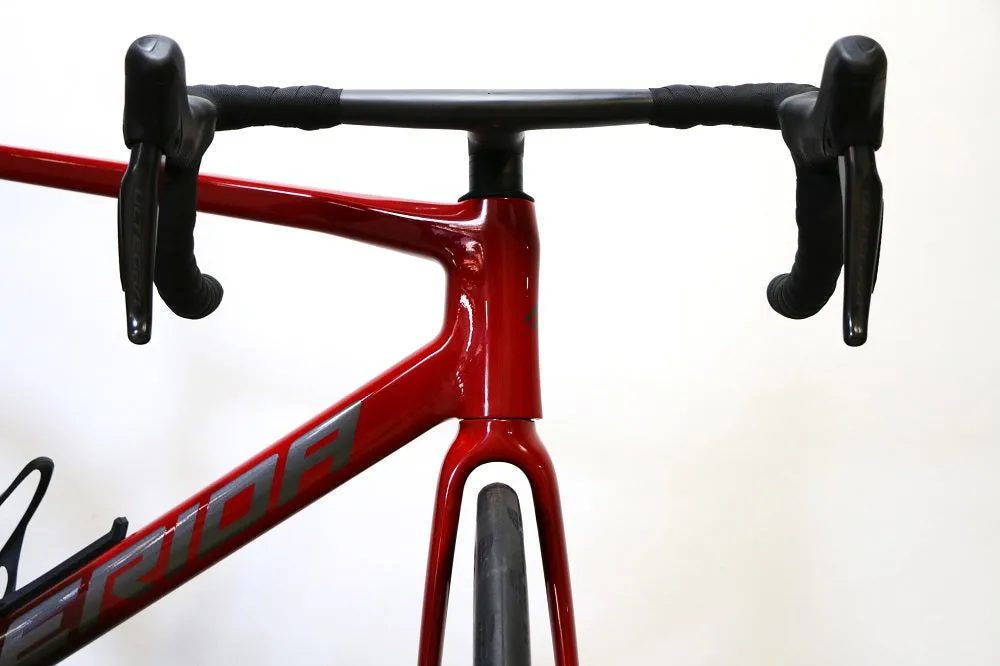

HANDLEBAR
MERIDA TEAM SL 1P INTEGRATED
material: carbon
380mm (XXS-XS-S)
400mm (M-L-XL)

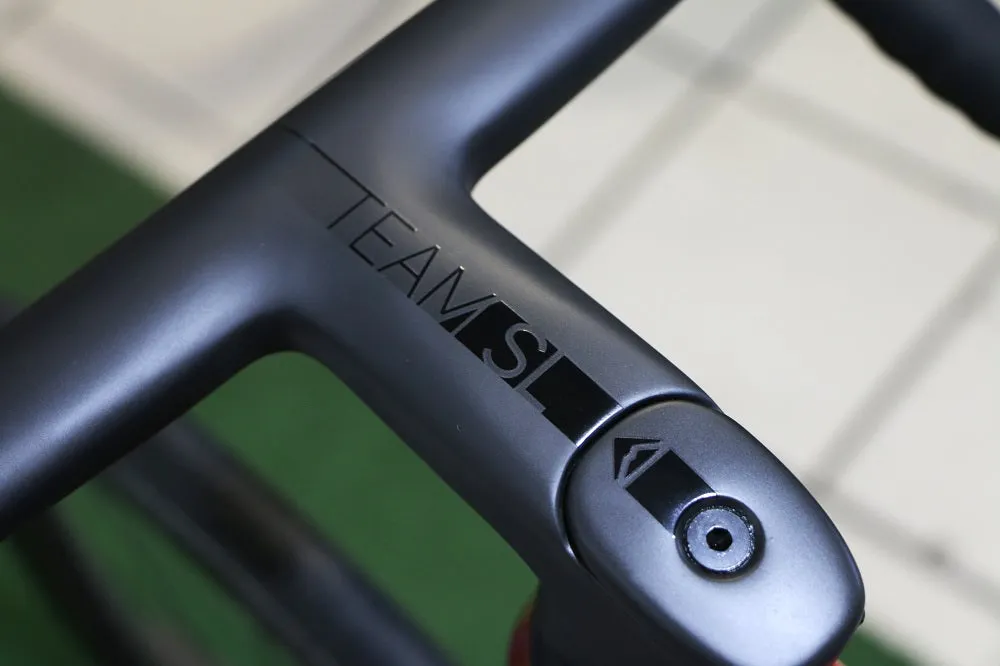

HANDLEBAR STEM
MERIDA TEAM ONE-PIECE INTEGRATED
material: carbon
90 mm-3XS/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL
incl. MERIDA SMART MOUNT

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano Ultegra Di2

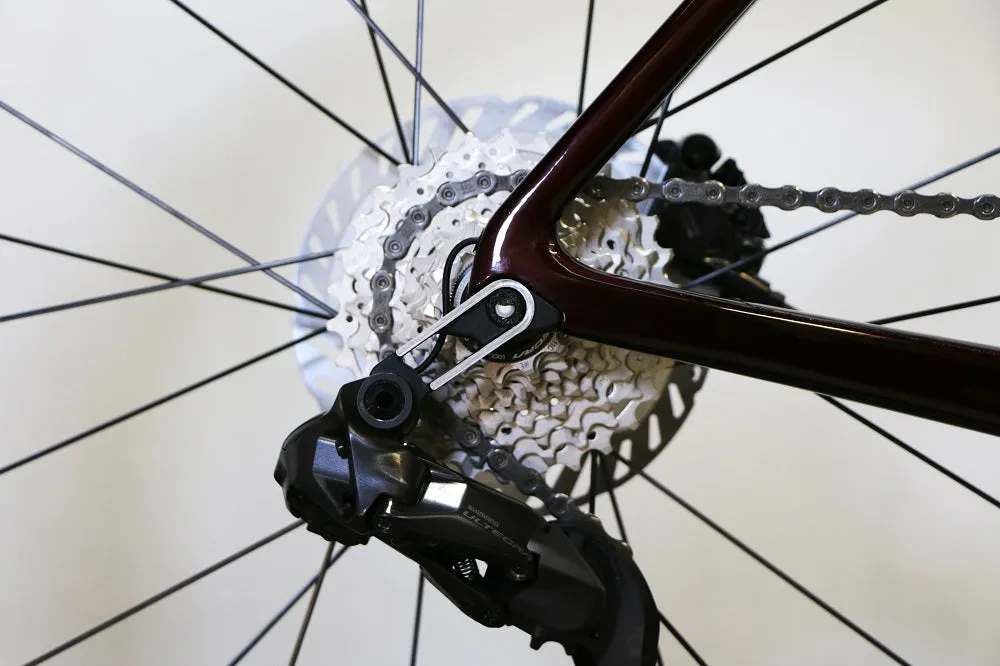

DERAILLEUR (R)
Shimano Ultegra Di2

SHIFTERS
Shimano Ultegra disc Di2

SEAT POST
MERIDA TEAM SL
27.2mm diameter
15mm setback
Carbon
S-Flex

SEAT CLAMP
MERIDA EXPERT

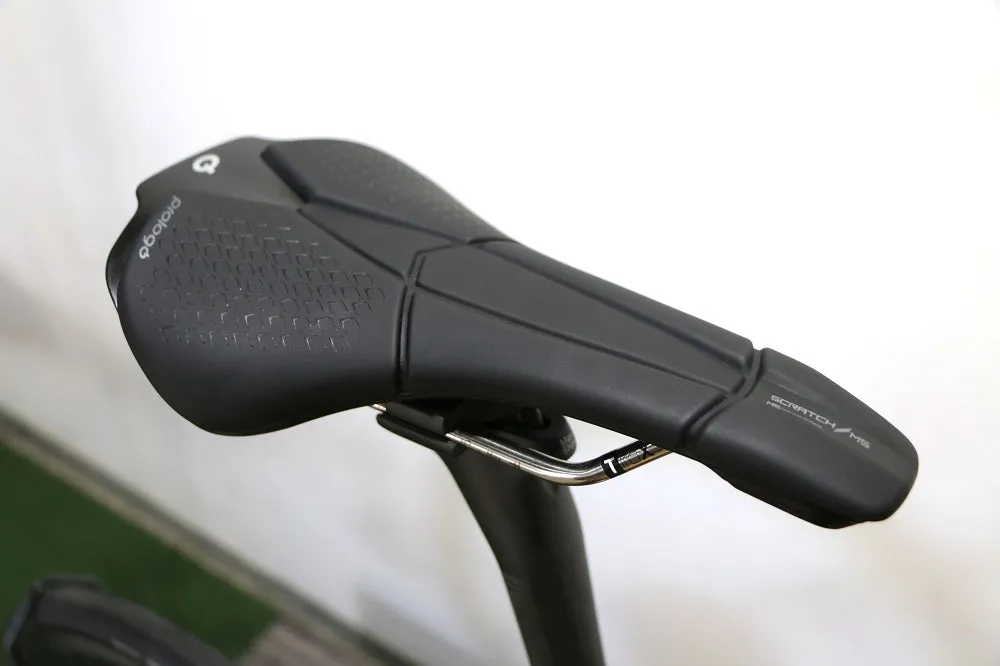

SADDLE
Prologo Scratch M5

CHAIN
Shimano M6100-12

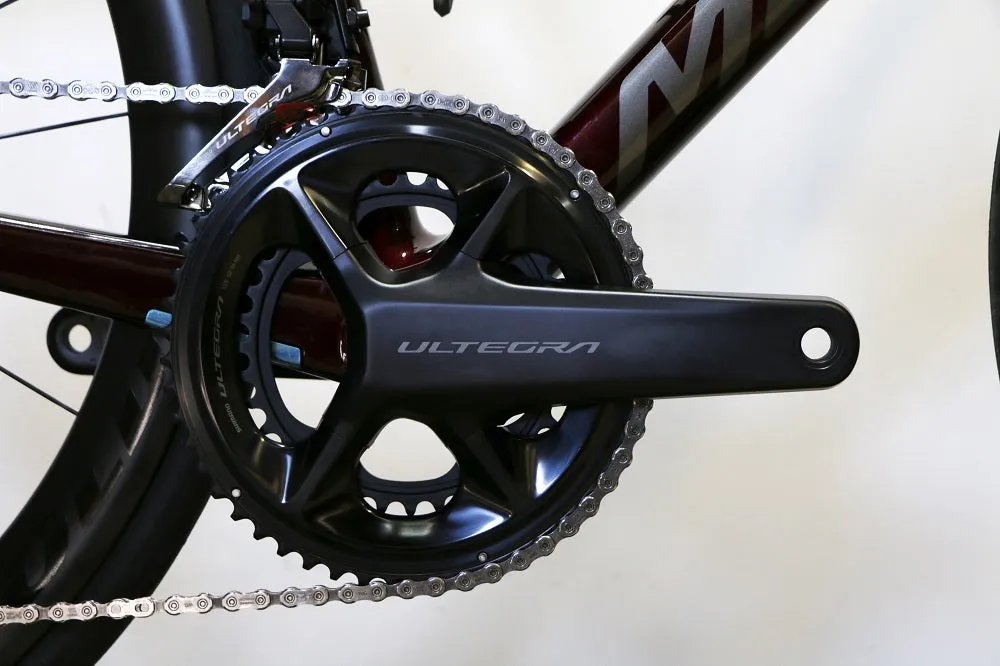

CRANK
Shimano Ultegra
52-36 teeth
165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

FREEWHEEL
Shimano Ultegra R8100
11-30 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B

WHEELSET
Reynolds BL 46 Expert DB, 100x12mm width front hub
142x12mm width rear hub
21mm inner width
46mm height
Centerlock
Shimano HG
material: carbon
Tubeless ready (tubeless tape and valves included)

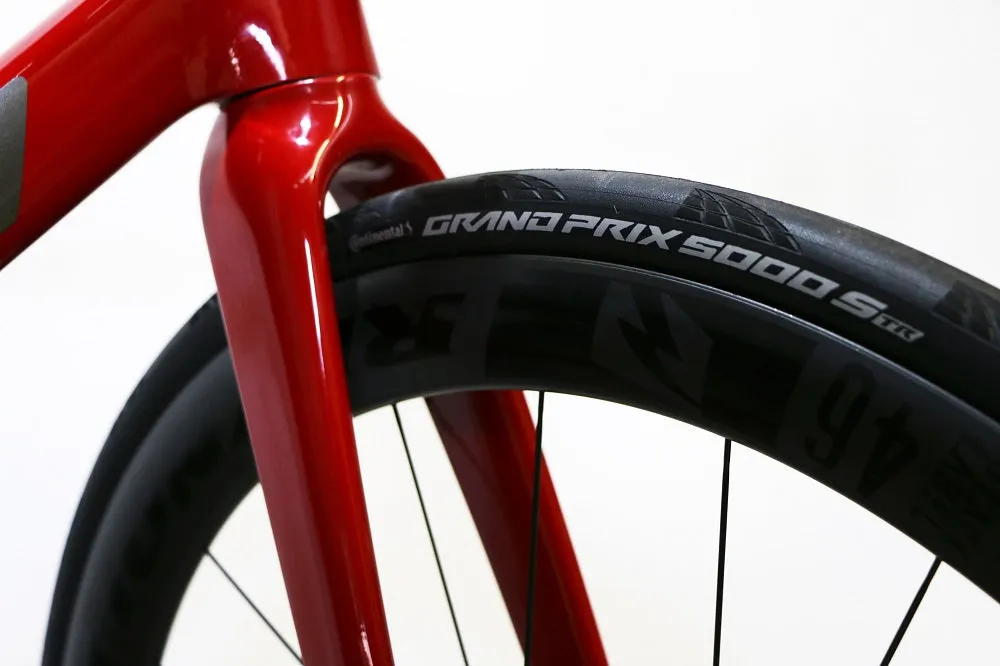

TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
7.3 kg
