FRAME
SCULTURA CF3 V
material: carbon
700x30C max. wheelsize
100x12/ 142x12 mm axle standard
Pressfit 86,5

FORK
SCULTURA CF3 disc
material: carbon
700x30C max. wheelsize

BRAKES
Shimano Ultegra
Hydraulic disc
ROTORS Shimano CL800
160 mm

BRAKE LEVER
Shimano Ultegra

HEADSET
FSA ACR

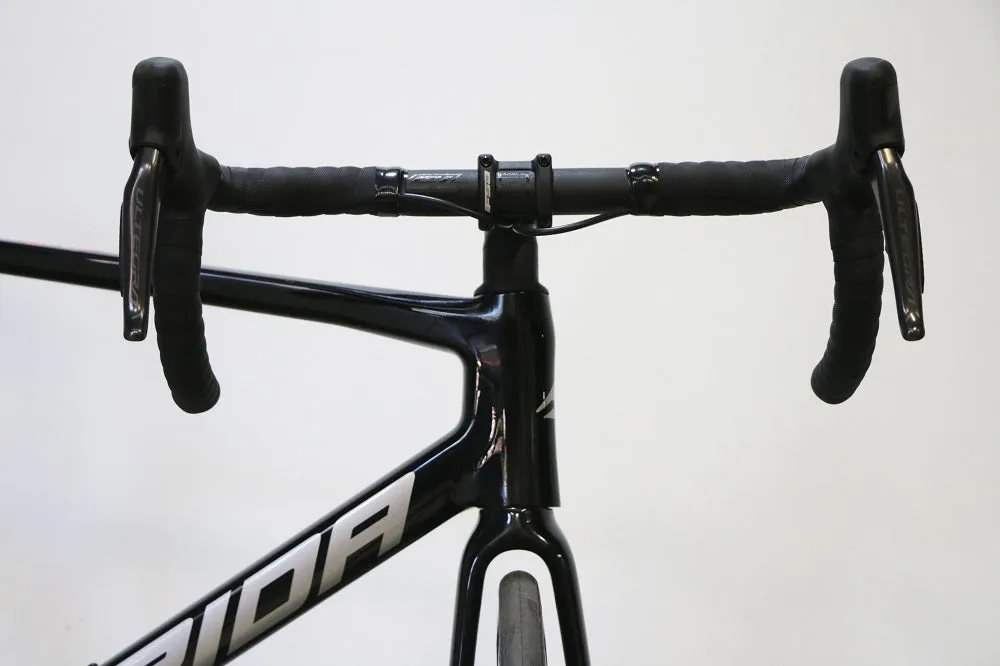

HANDLEBAR
MERIDA EXPERT SLII
material: aluminium
380 mm(XXS) , 400 mm (XS) , 420 mm (S-M-L) , 440 mm (XL)

HANDLEBAR STEM
FSA SMR ACR
material: aluminium
-6° stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano Ultegra Di2

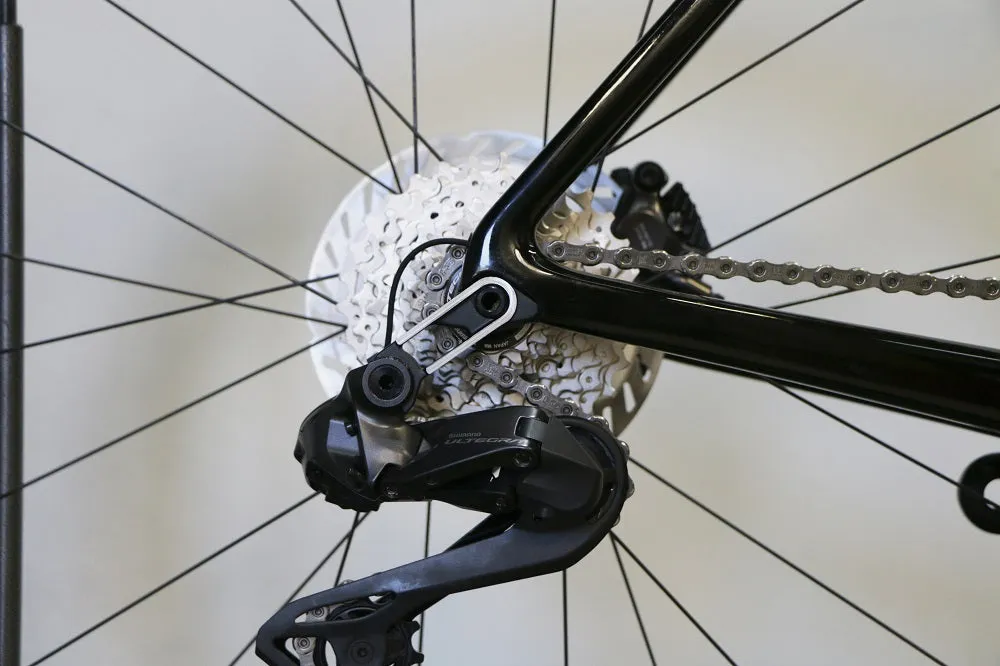

DERAILLEUR (R)
Shimano Ultegra Di2

SHIFTERS
Shimano Ultegra disc Di2

SEAT POST
MERIDA TEAM SL
27.2 mm diameter
15 mm setback
Carbon
S-Flex

SEAT CLAMP
MERIDA EXPERT

SADDLE
Prologo Scratch M5
V-mount adapter
incl. MERIDA minitool

CHAIN
Shimano CN-M6100-12

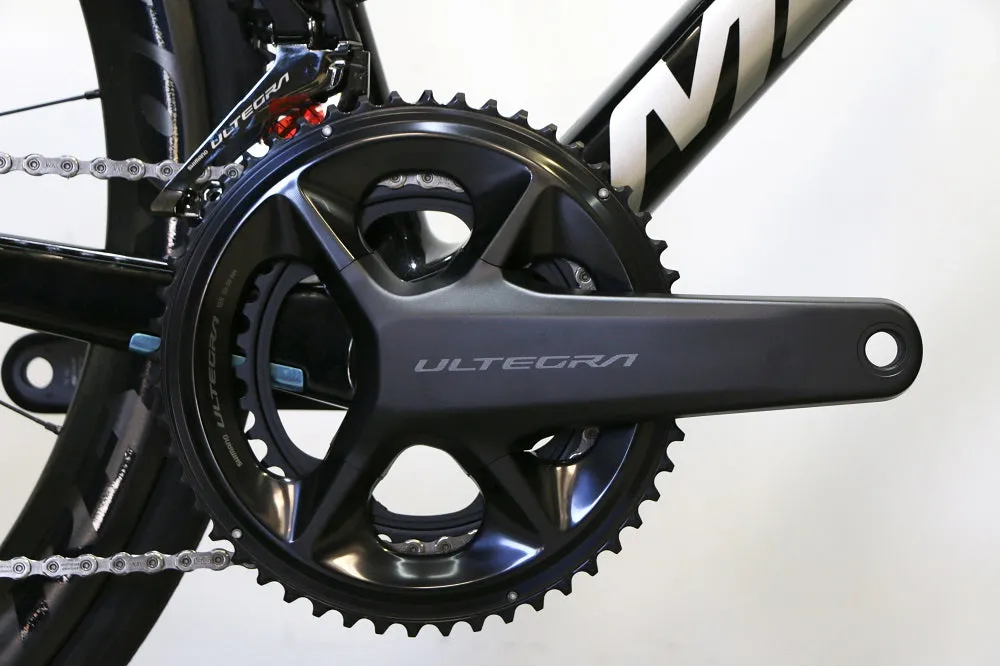

CRANK
Shimano Ultegra
52-36 teeth
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL

FREEWHEEL
Shimano CS-R8100
11-30 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B
Pressfit 86.5 mm

WHEELSET
Reynolds AR 46 DB
100x12 mm width front hub
142x12 mm width rear hub
21 mm inner width
41 mm height
Centerlock
material: carbon
Tubeless ready (tubeless tape and valves included)

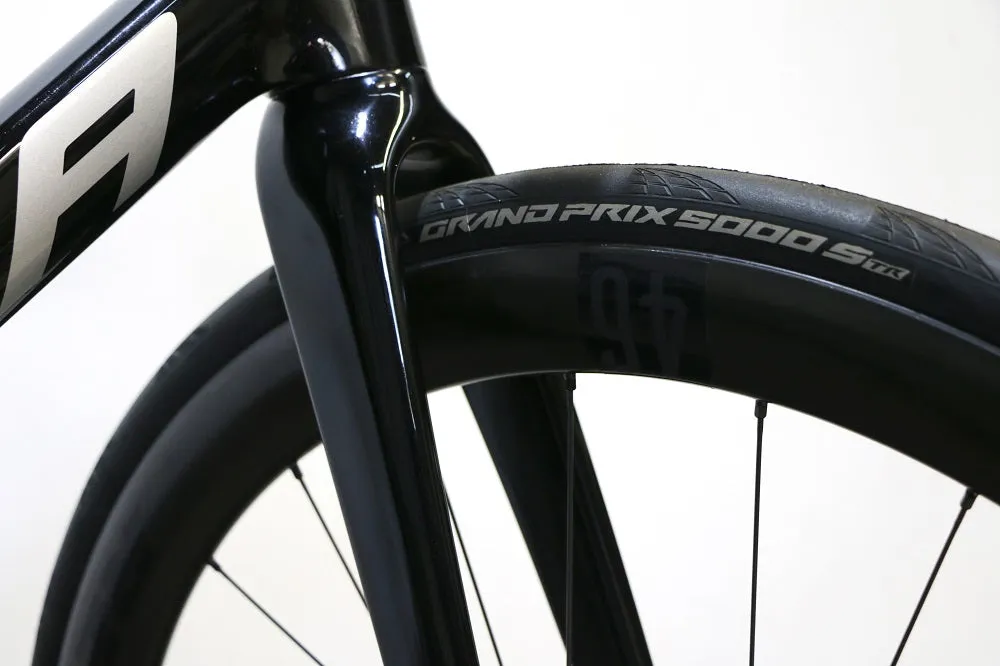

TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL
including removable lever
6/4 mm allen key

APPROX.WEIGHT
7.6 kg

MAX. WEIGHT
120 kg
