FRAME
SCULTURA CF3 V
material: carbon
700x30C max. wheelsize
100x12/ 142x12 mm axle standard
Pressfit 86,5

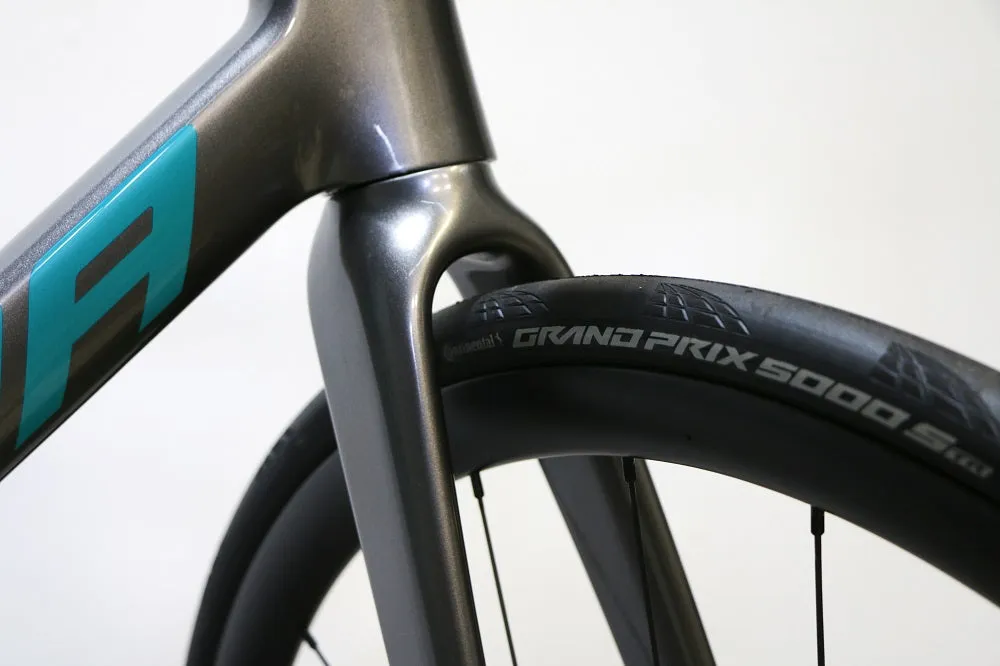

FORK
SCULTURA CF3 disc
material: carbon
700x30C max. wheelsize

BRAKES
Sram Rival eTap AXS
Hydraulic disc
ROTORS Sram Paceline
160 mm

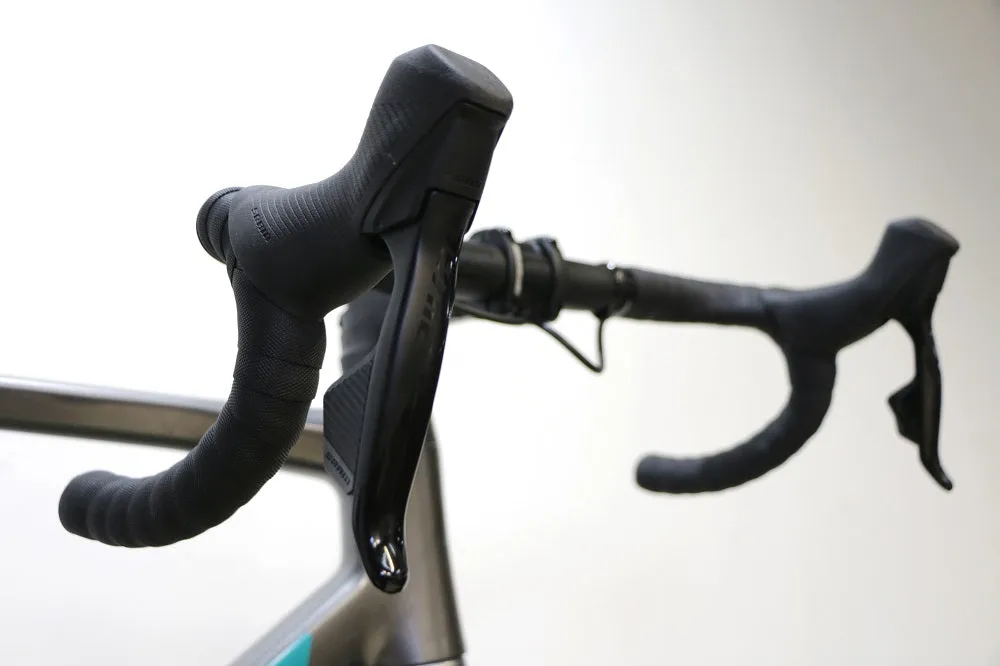

BRAKE LEVER
Sram ED Rival eTap AXS

HEADSET
FSA ACR

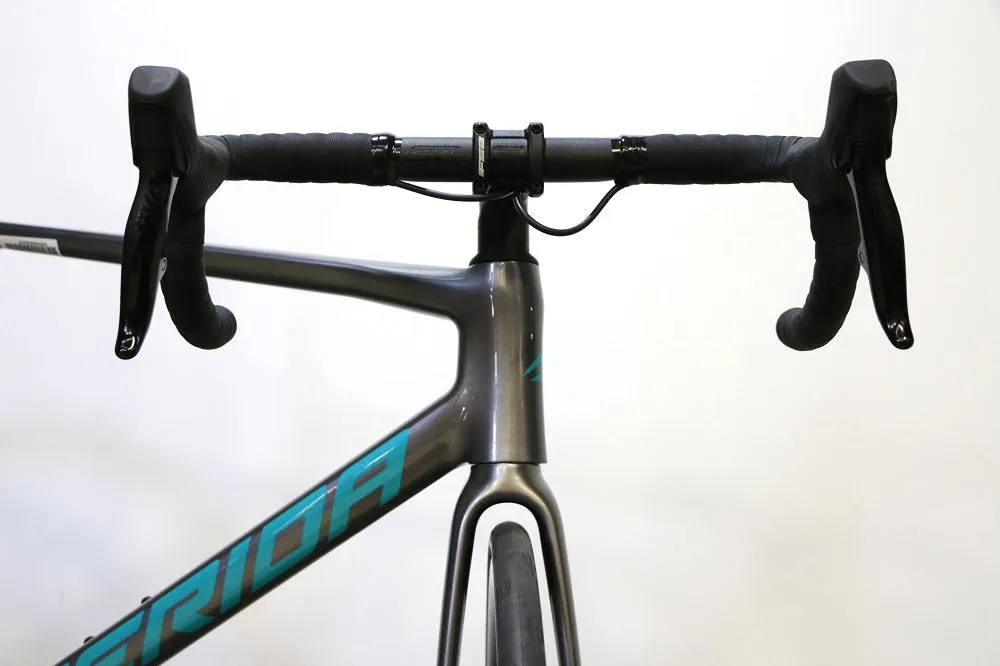

HANDLEBAR
MERIDA EXPERT SLII
material: aluminium
380 mm(XXS) , 400 mm (XS) , 420 mm (S-M-L) , 440 mm (XL)

HANDLEBAR STEM
FSA SMR ACR
material: aluminium
-6° stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Sram Rival eTap AXS

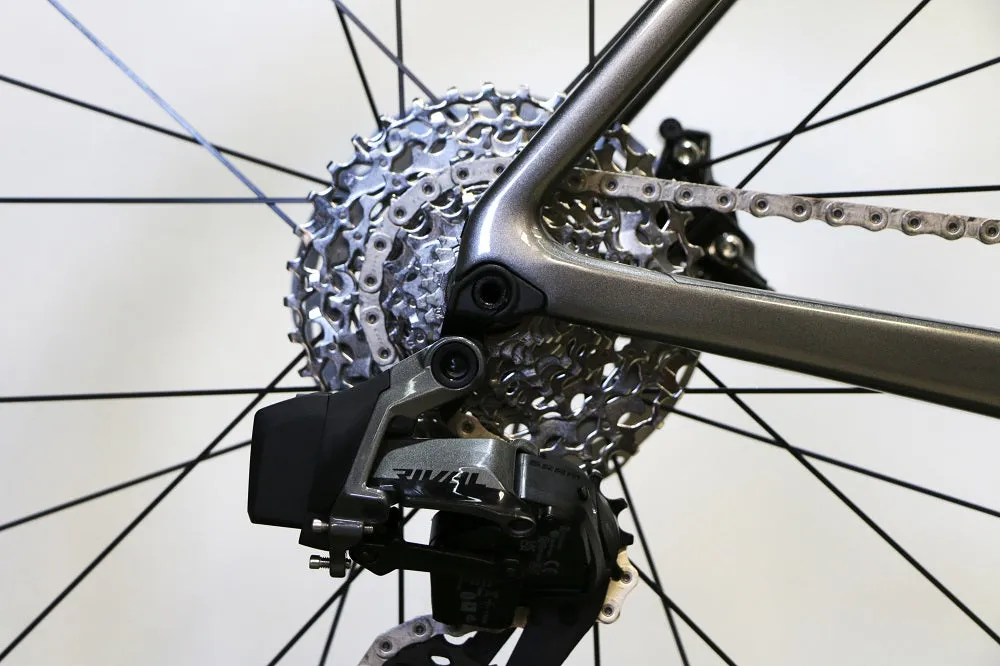

DERAILLEUR (R)
Sram Rival eTap AXS

SHIFTERS
Sram Rival eTAP AXS HRD

SEAT POST
MERIDA TEAM SL
27.2 mm diameter
15 mm setback
Carbon
S-Flex

SEAT CLAMP
MERIDA EXPERT

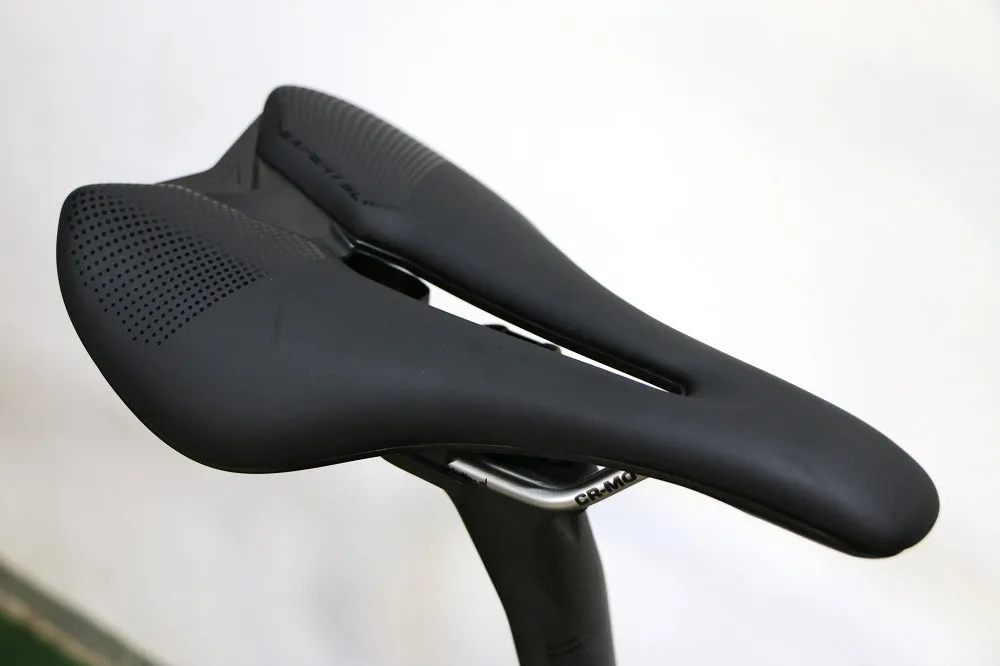

SADDLE
MERIDA EXPERT SL
V-mount
incl. MERIDA minitool

CHAIN
Sram Rival

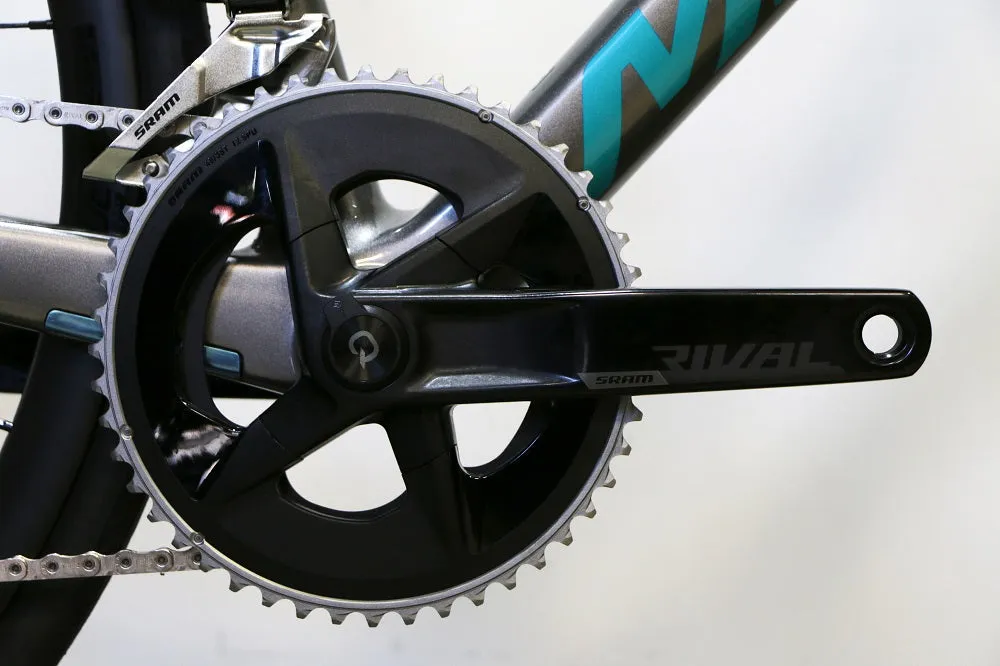

CRANK
Sram Rival eTap AXS
48-35 teeth
Power Meter
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL

FREEWHEEL
Sram XG-1250
10-36 teeth
12 speed

BOTTOM BRACKET
Sram Pressfit DUB
Presfit 86.5 mm

WHEELSET
Vision SC30 Carbon DB
100x12 mm width front hub
142x12 mm width rear hub
19 mm inner width
33 mm height
Centerlock
material: carbon

TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL
including removable lever
6/4 mm allen key

APPROX. WEIGHT
8.2 kg

MAX. WEIGHT
120 kg
