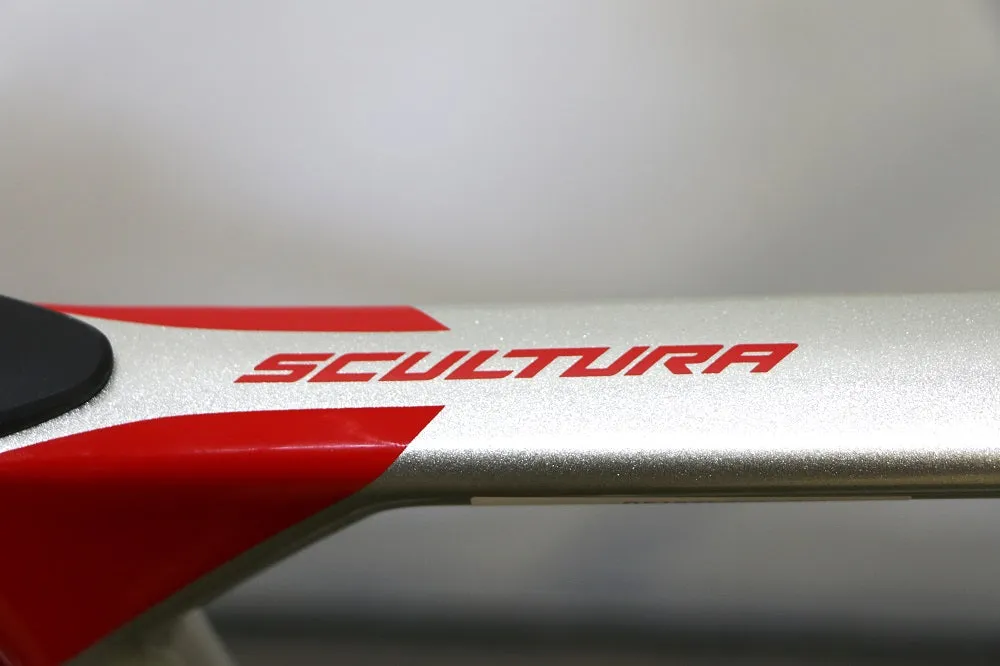

FRAME
SCULTURA CF3 V

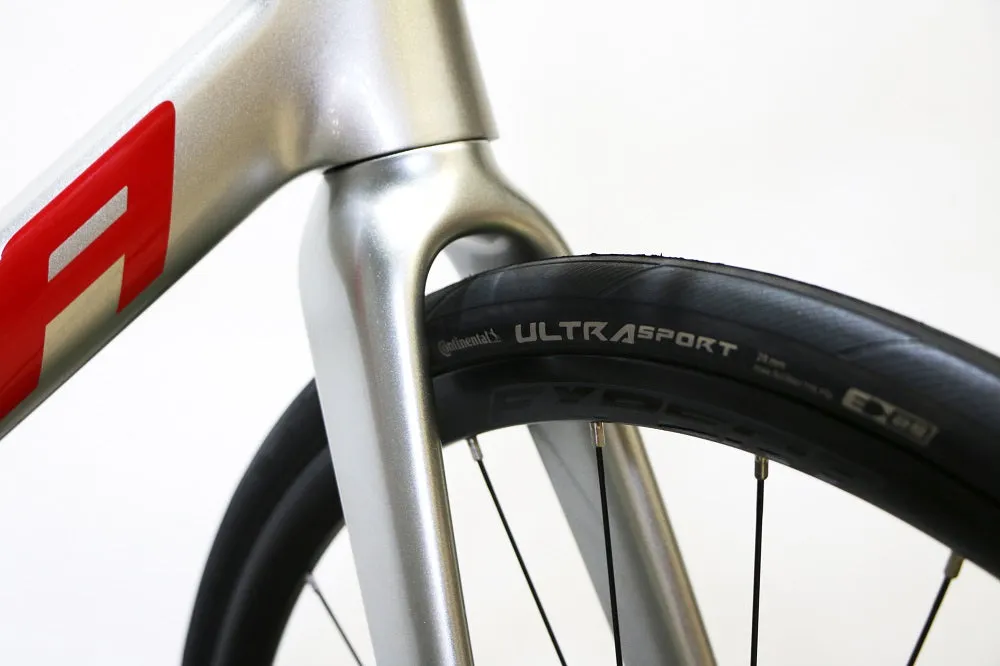

FORK
SCULTURA CF3 disc
material: carbon
700x30C max. wheelsize
MERIDA EXPERT CC

BRAKES
Shimano 105
Hydraulic disc

ROTORS
Shimano RT10
160 mm

BRAKE LEVER
Shimano 105

HEADSET
FSA ACR

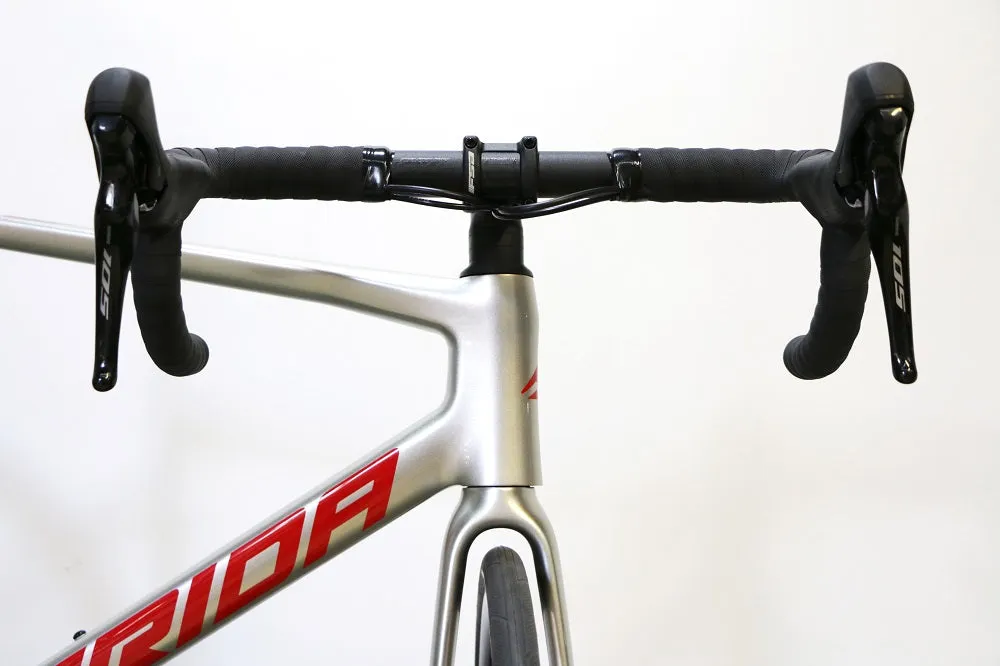

HANDLEBAR
MERIDA EXPERT SLII

HANDLEBAR STEM
FSA SMR ACR

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano 105

DERAILLEUR (R)
Shimano 105

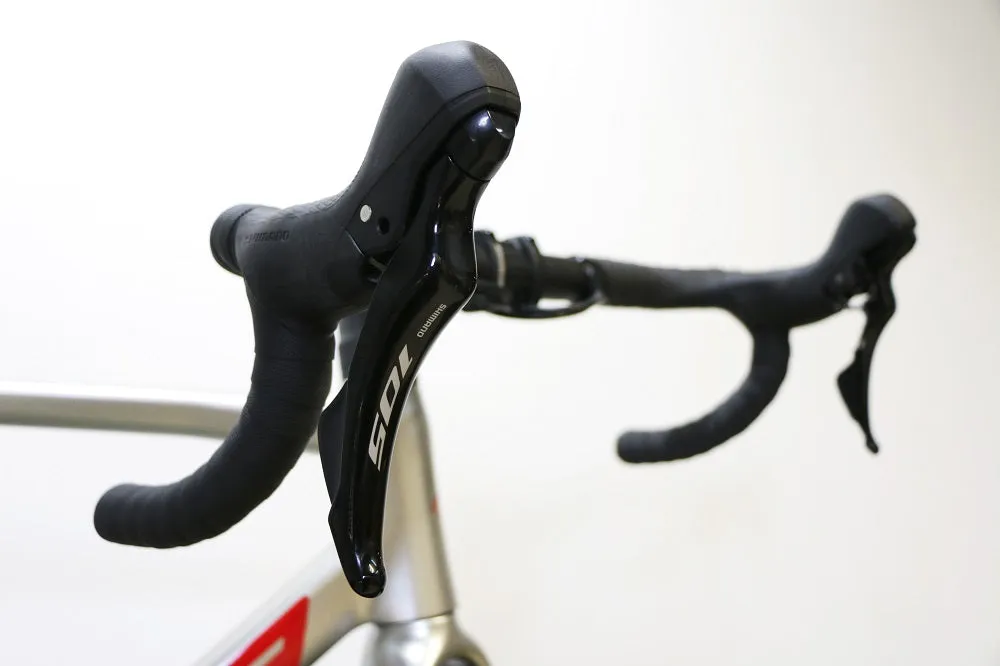

SHIFTERS
Shimano 105 disc

SEAT POST
MERIDA EXPERT CC

SEAT CLAMP
MERIDA EXPERT

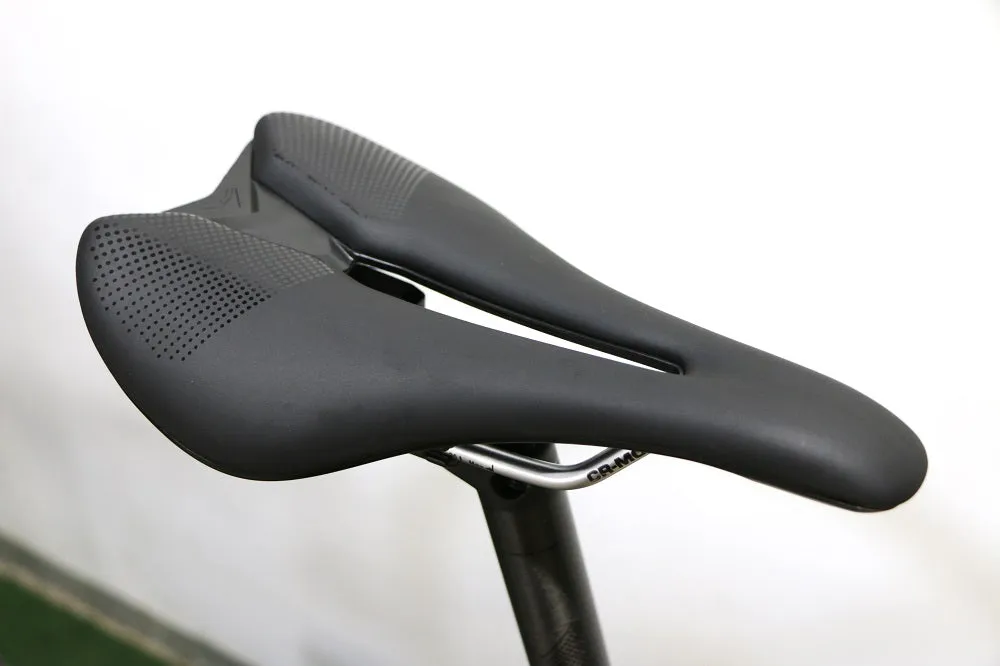

SADDLE
MERIDA EXPERT SL

CHAIN
Shimano CN-M6100-12

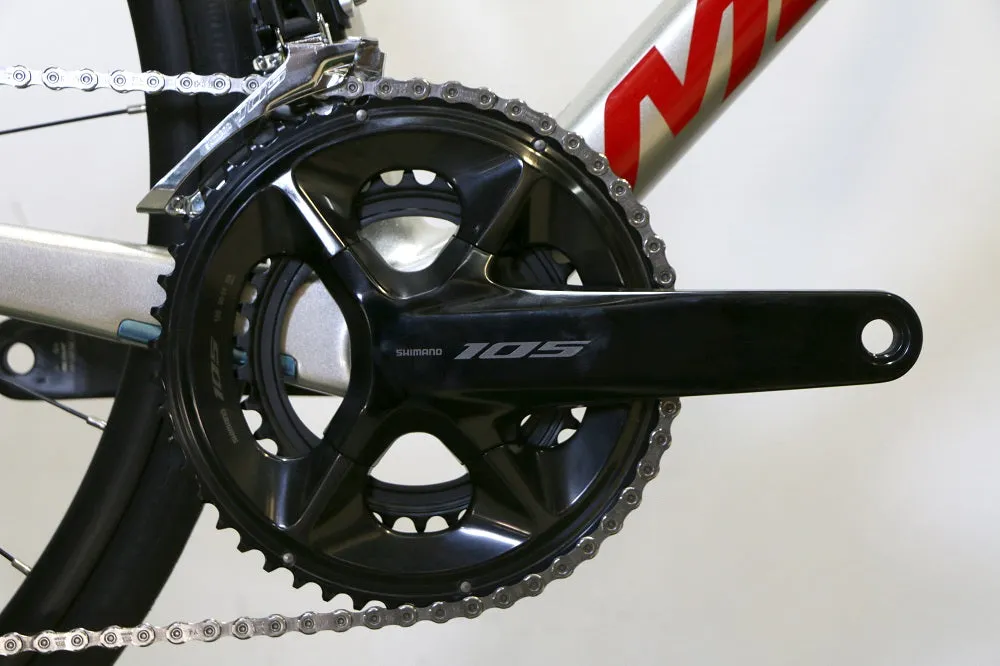

CRANK
Shimano 105
50-34 teeth
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL

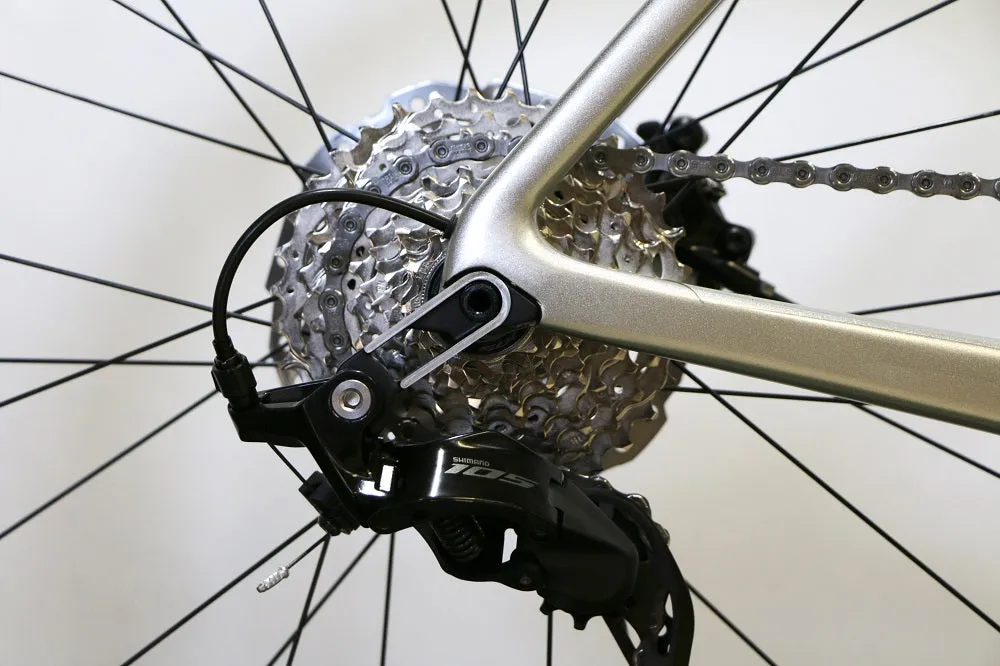

FREEWHEEL
Shimano CS-R7100
11-34 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB71-41B

HUBS
VP CLK170F / VP CLK270R

RIMS
MERIDA EXPERT SL
17 mm inner width
22 mm height
material: aluminium
Tubeless ready (tubeless tape and valves not included)

TYRE FRONT
Maxxis Highroad
700x28C
fold *tubeless ready

TYRE REAR
Maxxis Highroad
700x28C
fold *tubeless ready

AXLES
MERIDA EXPERT SL

SPOKES
Double Butted Black stainless

WEIGHT
8.48 kg

MAX. WEIGHT
120 kg
