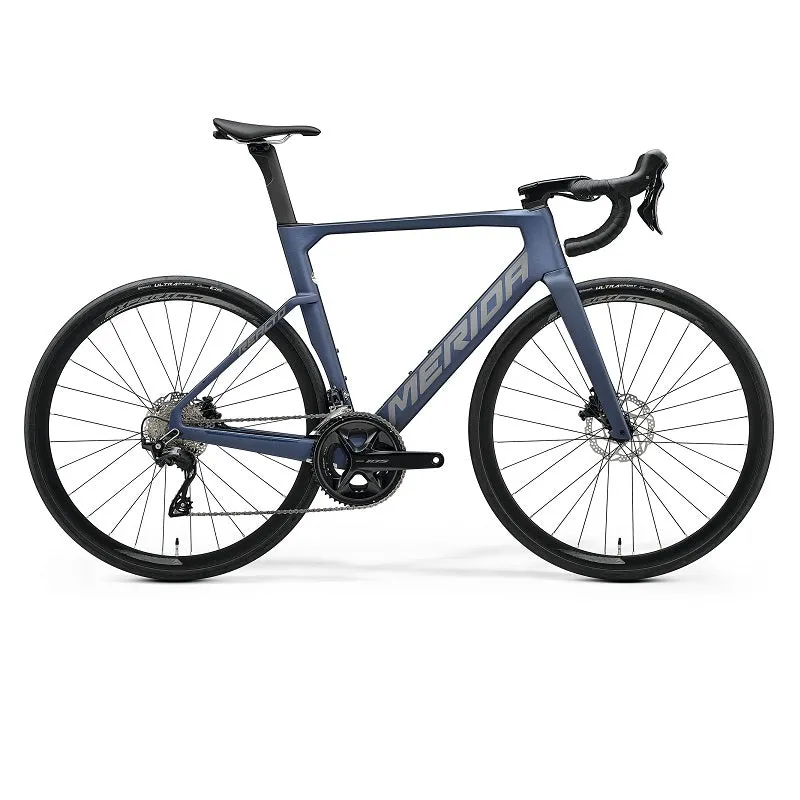

FRAME
REACTO CF3 IV

FORK
REACTO CF3 IV DISC
material: carbon
700x30C max. wheelsize

BRAKES
Shimano 105
Hydraulic disc

ROTORS
Shimano RT54
160mm

BRAKE LEVER
Shimano 105

HEADSET
MERIDA TEAM SL
VP-MRBHB (OP203 neck)

HANDLEBAR
MERIDA EXPERT CW
material: aluminium
380mm (XXS-XS)
400mm (M-L-XL)

HANDLEBAR STEM
MERIDA EXPERT SL 2PII
material: aluminium
-9° stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano 105

DERAILLEUR (R)
Shimano 105

SHIFTERS
Shimano 105 disc

SEAT POST
MERIDA TEAM CW
Aero shape
15mm setback
Carbon

SEAT CLAMP
MERIDA REACTO Aero

SADDLE
MERIDA EXPERT SL

CHAIN
Shimano M6100-12

CRANK
Shimano 105
52-36 teeth
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

FREEWHEEL
Shimano 105 R7101
11-34 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B

HUBS
Shimano HB-TC500 / Shimano HB-TC500-HL
100x12mm width front hub
28 spoke holes
Centerlock
12-142mm width rear hub
28 spoke holes
Centerlock

RIM
MERIDA EXPERT CW
19mm inner width
30mm height
material: aluminium
Tubeless ready (tubeless tape and valves not included)

TYRE FRONT
Continental Ultra Sport III
700x28C
fold

TYRE REAR
Continental Ultra Sport III
700x28C
fold

AXLES
MERIDA EXPERT SL

SPOKES
Double Butted Black stainless

APPROX. WEIGHT
9 kg
